| Top > Recall > Ignition from the power supply board |
 |
| cause |

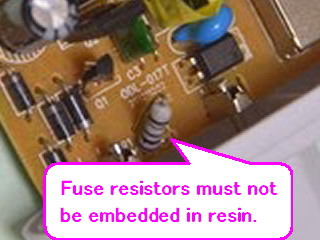

| The fuse resistor was buried in resin and did not melt properly when the circuit malfunctioned. |
| consideration |
| At the initial stage of power supply design, the fuse resistor was
not buried in resin. After passing safety/reliability tests (especially open/short tests) The temperature rise of parts became a problem, and it was necessary to fill them with resin. We started mass production without noticing that fuse resistors should not be filled with resin. |
 |
| important point |
| Why did you use a fuse resistor? ... for cost reduction? The open/short test was not performed again after resin filling. No one knew that fuse resistors should not be resin-filled. |
| best way |

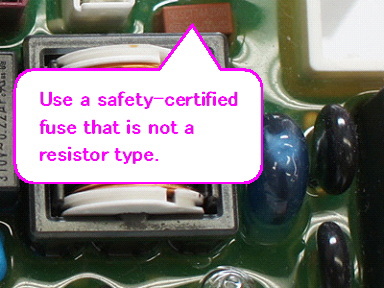

| Use safety standard certified fuses instead of fuse resistors. |
 |
|
