Making a stethoscope jig |

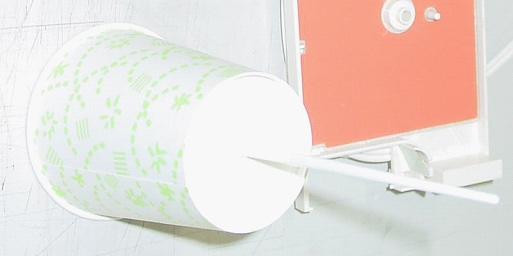

Sharpen the tip of the coffee stir stick and attach it to the paper cup. |
![]() |
Find the loudest point. |

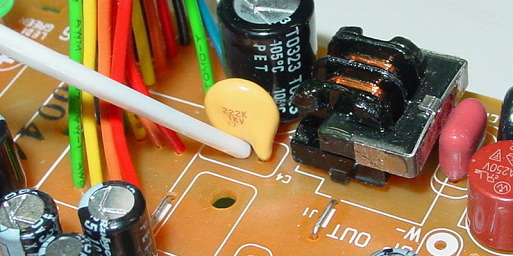

Find the place where the sound is loudest. The place in the photo was the loudest. |
![]() |
Identify the parts that are making noise. |

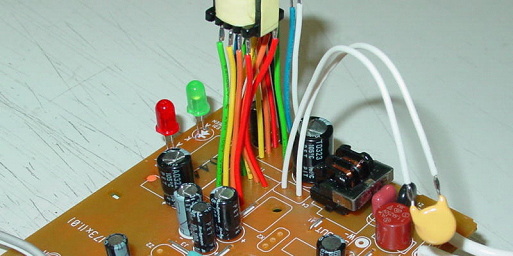

When the yellow capacitor was floated from the board, the sound stopped. As shown in the photo, float any suspect components, such as the transformer. |
![]() |
When you place the tip of the listening jig on the yellow capacitor that is floated off the board, you will clearly hear audible noise. |
![]() |
