Convert Resistor's VNWA-s1p data to impedance.

Explanation of how to calculate impedance from extracted VNWA s1p data.

Import the VNWA data of the frequency characteristics of the resistor into EXCEL.

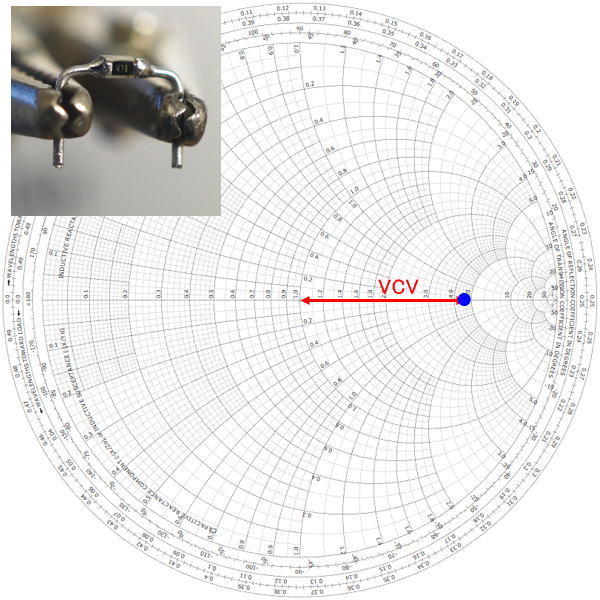

235 Ω resistor plotted on an S11 Smith chart

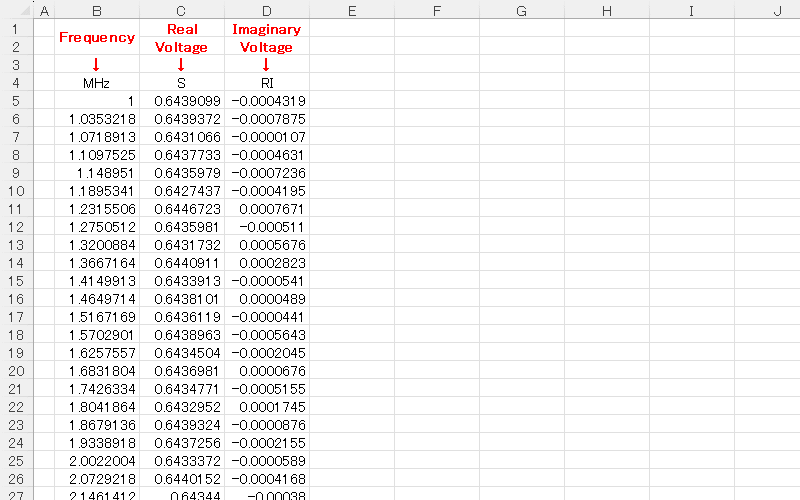

Explanation about extracted s1p data.
The S11 of a 235Ω resistor was measured using a Vector Network Analyzer (VNWA3E) DG8SAQ, and the S1p data was imported into Excel. This image was prepared for creating a frequency response graph.

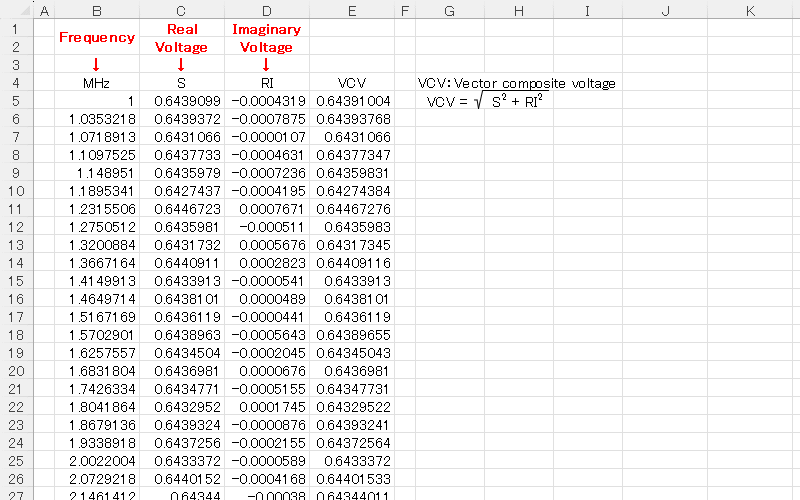

 Calculates the Vector composite voltage.
The S11 of a 235Ω resistor was measured using a Vector Network Analyzer (VNWA3E) DG8SAQ, and the S1p data was imported into Excel. Image showing how to calculate vector composite voltage.

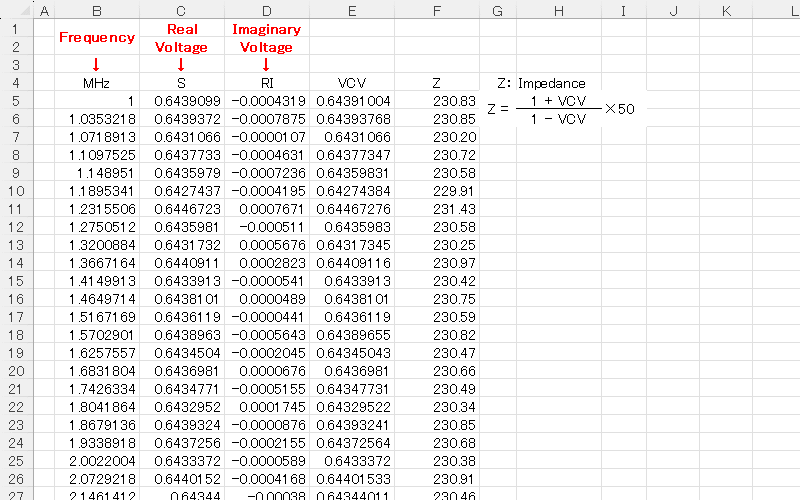

Calculate impedance from VCV.
The S11 of a 235Ω resistor was measured using a Vector Network Analyzer (VNWA3E) DG8SAQ, and the S1p data was imported into Excel. This image shows how to calculate impedance from vector composite voltage.
Displays the converted Impedance data as a graph.
Click here to download Create-S11ZFgraph-VNWAs1p.xlsx
